Industrial Robot Safety & LOTO Compliance for West Michigan Manufacturers

Robot cells are the fastest-growing area of OSHA enforcement scrutiny under 1910.147. Multi-source energy, interlock gated entry, and machine-specific procedures get missed when documentation falls behind installation. We close those gaps with robot cell LOTO procedures, ANSI R15.06 access control placards, and annual audits that hold up to inspection.

OSHA 1910.147 Compliant ANSI R15.06 Aligned ISO 10218 Aware West Michigan On-Site
Request a Free Robotics LOTO Assessment See Our Services

No commitment. No sales pressure. Just a clear read on where your robot cells stand.

Robot Cell LOTO Procedures
Access Control Placards
Multi-Source Energy Isolation
Annual Audit Documentation
On-Site West Michigan

The Problem

Robot Cells Are the Most Overlooked Gap in Modern LOTO Programs

Most facilities have a LOTO program. Most facilities also added robot cells faster than they updated that program. The result is a documentation gap that an OSHA compliance officer finds in the first ten minutes of a walkthrough.

  • Procedures address electrical isolation but miss pneumatic, hydraulic, and stored kinetic energy
  • Interlock gated entry has no access control placard at the point of use
  • One generic procedure covers an entire robot family instead of the specific cell
  • Multi-cell systems with shared energy sources have no isolation diagram
  • End-of-arm tooling changes happen without updating the LOTO documentation
  • Authorized employee training has not been refreshed since the cell was commissioned

Why this matters: 1910.147 ranked #4 on OSHA's FY2025 Top 10 with 2,177 citations. OSHA typically issues three to four separate citations per LOTO inspection because a documentation gap usually breaks multiple sub-clauses at once. Robot cells almost always trigger more than one. Source: OSHA Top 10 cited standards.

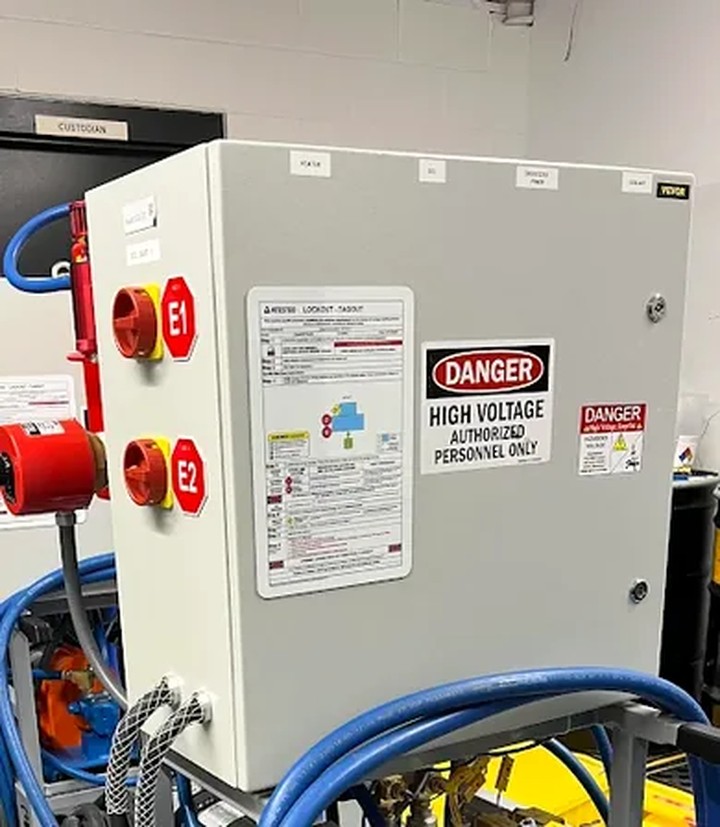

High voltage panel lockout tagout installed on industrial electrical disconnect

What a Compliant Robot Cell Looks Like

  • Cell-specific written LOTO procedure naming every energy source
  • Access control placard at every interlock gated entry point
  • Isolation device verification step documented before entry
  • Stored energy release sequence written and trained
  • End-of-arm tooling changes captured in the procedure
  • Annual review under 1910.147(c)(6) on file with written certification
  • Authorized employees trained on this specific cell, not a generic robot

Services

Everything Your Robot Cells Need to Pass an OSHA Inspection

Built around the way robotics actually get installed, expanded, and reconfigured on a manufacturing floor. Every deliverable maps to 1910.147, ANSI R15.06, and the ISO standards that apply to your cell.

Robot Cell LOTO Procedures

Cell-specific written procedures naming every energy source, isolation point, lockout device, verification step, and stored energy release sequence. Built to pass 1910.147(c)(4) on inspection.

Learn more →

Access Control Placards

Durable, OSHA-compliant placards installed at every interlock gated entry. Identifies the cell, the authorized procedure, the energy isolation requirements, and any residual hazards. Industrial aluminum, rated for the life of the cell.

Learn more →

Robotics LOTO Gap Analysis

On-site walkthrough of every robotic cell on your floor. We map every gap to the specific sub-clause of 1910.147 and the relevant clause of ANSI R15.06. You leave with a written report and a prioritized fix list.

Learn more →

Annual LOTO Audit

1910.147(c)(6) requires a documented annual procedure review. We run the audit on your robot cells or your team runs it inside LockStep auditing software. Either way you walk away with the written certification OSHA expects to see.

Learn more →

Multi-Source Energy Isolation

Mapping for cells with multiple energy types feeding a single robot or shared infrastructure across multiple cells. Includes isolation diagrams, sequencing, and stored energy release documentation.

Learn more →

Authorized Employee Training

Cell-specific training for the operators and maintenance staff who will actually lock out the cell. Documented under 1910.147(c)(7) so it holds up in audit and incident review.

Learn more →

Where most cells fail inspection: Interlock gated entry without access control placards. ANSI R15.06 requires safeguarded entry. 1910.147 requires the procedure at the point of use. Without the placard, the program fails both.

Why Choose Us

Built Specifically Around Robot Cell Compliance, Not Generic LOTO

Most LOTO providers treat robotics as a footnote. Our entire scope is built around the way robot cells actually get installed, integrated, and modified. That focus is what closes the gaps an OSHA inspector looks for first.

  • On-site visits to gather machine-specific energy source data per cell
  • CAD work for accurate cell layouts, isolation diagrams, and access placards
  • LockStep compliance software for centralized robot cell documentation
  • Turnkey support from gap analysis through installation and training
  • Experience with automotive Tier 1, aerospace, food and beverage, and plastics manufacturers
  • Specialists in multi-cell, multi-source isolation and shared energy infrastructure
Schedule Your Walkthrough
LOTO compliance professionals performing on-site lockout tagout work in a manufacturing facility

#4

OSHA FY2025 Top 10 rank for 1910.147

2,177

1910.147 citations issued in FY2025

$16,550

Maximum serious violation penalty per citation

3-4

Citations per LOTO inspection on average

Common trigger to call us: A new robot cell coming online. An OSHA inspection finding. A near-miss inside a cell. A corporate safety push to standardize across plants. An annual audit on the calendar. Any of those is a good reason to start with a free walkthrough.

Wildly Customizable

Robot Access Placards Built to Your Spec, Not Ours

Catalog placard providers handle the easy cells. The standard interlock gate, the standard energy isolation list, the standard hazard pictograms. The work gets harder when your cell has an internal corporate access standard, a regional compliance requirement, an OEM-specific procedure reference, or a multi-language workforce. Most providers say no. We start.

Every access control placard we produce is built from the ground up to the cell. No template lock-in. If you have a spec, an internal corporate standard, an OEM handoff requirement, or a regional compliance constraint, we build to it.

  • No template lock-in. Every placard is custom-designed to the cell and the spec
  • OEM access procedure references incorporated alongside compliant ANSI Z535 marks
  • International standard support, including JIS (Japan), EN (Europe), and GB (China)
  • Multi-language placards for facilities with non-English-speaking authorized employees
  • Custom dimensions to fit the actual interlock gate geometry, not catalog sizes
  • Corporate safety standard alignment for multi-site automotive and aerospace integrators
  • Material substrates beyond standard aluminum when the application demands it
See How Far We Customize

The Bespoke Robot Cell Brief

An international manufacturer recently came to us with a brief other vendors had turned down: a set of robot cell access placards built to their internal corporate access standard, in a non-English primary language, with regional compliance markings catalog providers did not stock. The brief was specific. The tolerances were tight. We delivered.

Bespoke cell-specific access placards are what we do every week, not an exception. If you have an OEM handoff that came in light on placard spec, a corporate standard that catalog providers cannot match, or a regional requirement nobody else stocks, that is exactly the project we are built for.

  • ANSI R15.06 + ANSI Z535 + ISO 10218 alignment simultaneously when required
  • JIS Z 9101 alignment for Japan-standard automotive supplier facilities
  • EN ISO 7010 alignment for European OEM parent companies
  • GB 2894 alignment for China-standard facilities
  • Multi-language layouts with right-to-left and CJK support
  • Internal corporate hazard pictograms incorporated alongside compliant ANSI marks
  • Optional QR linking to the cell-specific procedure in LockStep

Robot Cell Audit Automation

LockStep: Robot Cell LOTO Audits Without the Clipboard

The 1910.147(c)(6) annual audit on a robotics floor is more complex than on a standard equipment floor. Multi-source energy on every cell. Authorized employee interviews scoped to specific procedures. Stored energy release sequences that have to be verified in place. Most facilities still run that audit on paper, then transcribe everything into Excel later. The transcription is where the audit record goes wrong.

LockStep is our offline-first audit application built for robotics-heavy floors. Auditor downloads the cell registry to a tablet, walks every cell with no wifi required, captures photos and findings at the gate, conducts the authorized employee interview in place, and the application generates the (c)(6)(ii) written certification automatically. No clipboards. No Excel rollup. No retyping.

  • Offline-first. Works on plant floors with no wifi or cellular signal
  • Mobile and tablet capture at the interlock gate, not transcribed back at a desk
  • Multi-source energy verification enforced per cell, not skipped at the workflow level
  • Authorized employee interview script for the (c)(6)(i)(C) verification step
  • Automatic written certification per 1910.147(c)(6)(ii)
  • Multi-site rollup for corporate EHS across automotive Tier 1 and OEM networks

LockStep is included complimentary with most service engagements (gap analysis, access placards, or annual audits). Stand-alone licensing available for facilities with an existing LOTO program that want only the audit software.

Machine-specific lockout tagout procedure documentation posted at the point of use, the kind of cell record LockStep audits against the current state of the cell

What LockStep Replaces on a Robotics Floor

  • Clipboards on the floor for cell-by-cell annual walkthroughs
  • Photo capture on personal phones that never reaches the audit record
  • Procedure binders that drift out of sync with cell modifications
  • Excel rollups rebuilt by hand every audit cycle
  • Shared drives where the only copy of the cert lives
  • The audit-week scramble to find documentation OSHA already asked for

Industries Served

Built for the Manufacturers That Define West Michigan

The robotics density in this region is real. So is the regulatory exposure that comes with it.

Automotive Tier 1

Welding cells, assembly cells, material handling robots, and EV battery integration lines. Multi-cell isolation and shared energy sources are the norm.

Aerospace

Composite layup, machining cells, and inspection robots with tight tolerances and tighter audit trails. Documentation has to match the precision of the work.

Food and Beverage

Pick-and-place, palletizing, and packaging robots. Sanitation cycles and tooling changes drive procedure updates that often lag the cell itself.

Plastics and Injection Molding

Robotic part removal, in-mold labeling, and stack-and-pack cells. Stored thermal and pneumatic energy require explicit release sequences.

Office Furniture and Consumer Products

The signature West Michigan manufacturing base. Mixed-model cells with frequent end-of-arm tooling changes and frequent procedure drift.

Heavy Equipment and Capital Goods

Large-envelope welding cells, heavy material handling robots, and gantry systems. High consequence if the procedure is wrong.

Here to Help

Wherever Your Robot Cells Stand, We Will Meet You There

No wrong starting point. A free walkthrough is a conversation, not a pitch.

New Cell Coming Online?

Integrator handed over the cell, but the LOTO documentation is generic or missing? We build the cell-specific procedure and the access placard before commissioning is signed off.

Inherited a Robotics Floor?

Took over EHS or maintenance and the robotics LOTO scope is a question mark? We walk every cell, document the gaps, and prioritize the fixes that matter most.

Audit or Inspection Looming?

OSHA on the calendar or a recent finding to clear? We move fast. Gap analysis, placards, and procedure updates on timelines that match your reality.

Start With a Free Walkthrough

No commitment. No sales pressure. Just help.

On the Floor

Real LOTO Work. Real Cells. Real Compliance.

A sample of the energy isolation and lockout work we document and install for West Michigan manufacturers.

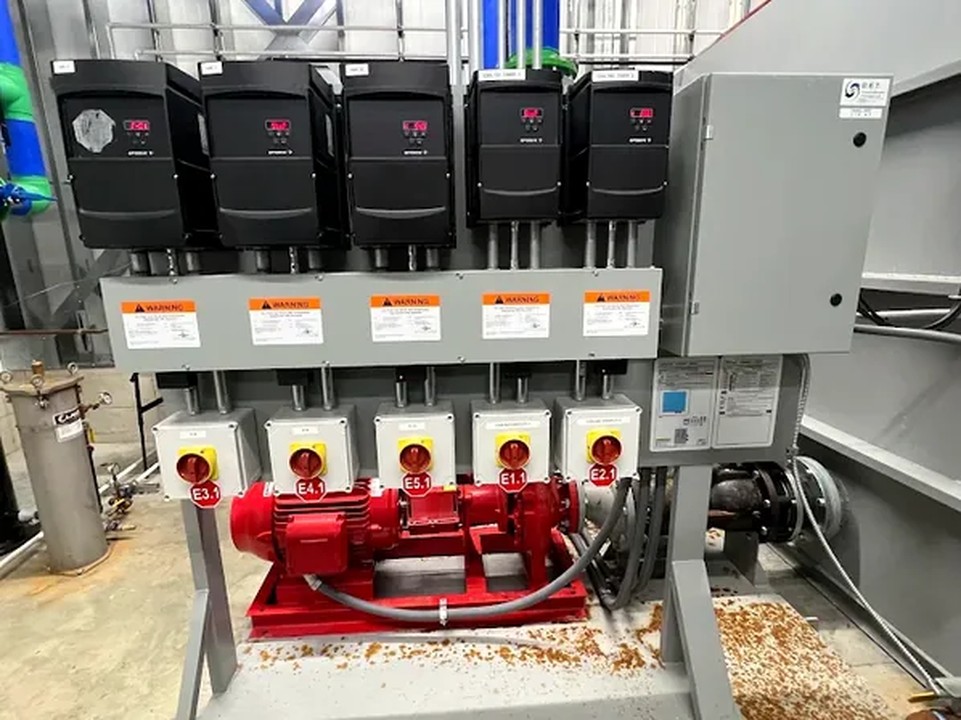

Motor station with multi-point lockout devices applied to electrical isolation points
Multi-point energy isolation on a motor station

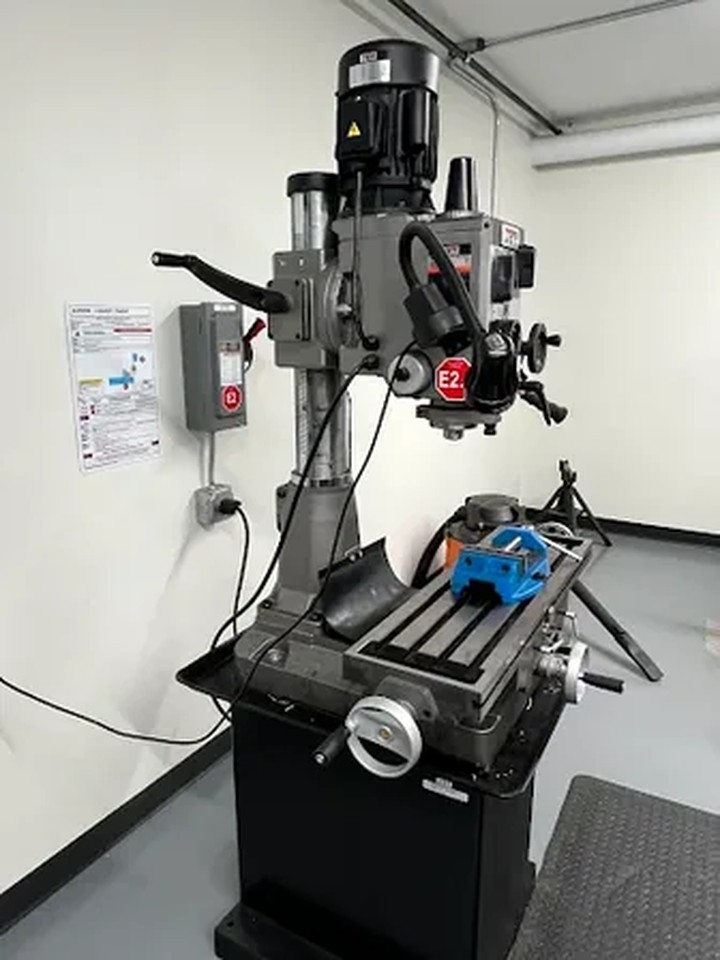

Machine-specific lockout point on a drill press with red lockout device installed
Machine-specific lockout point

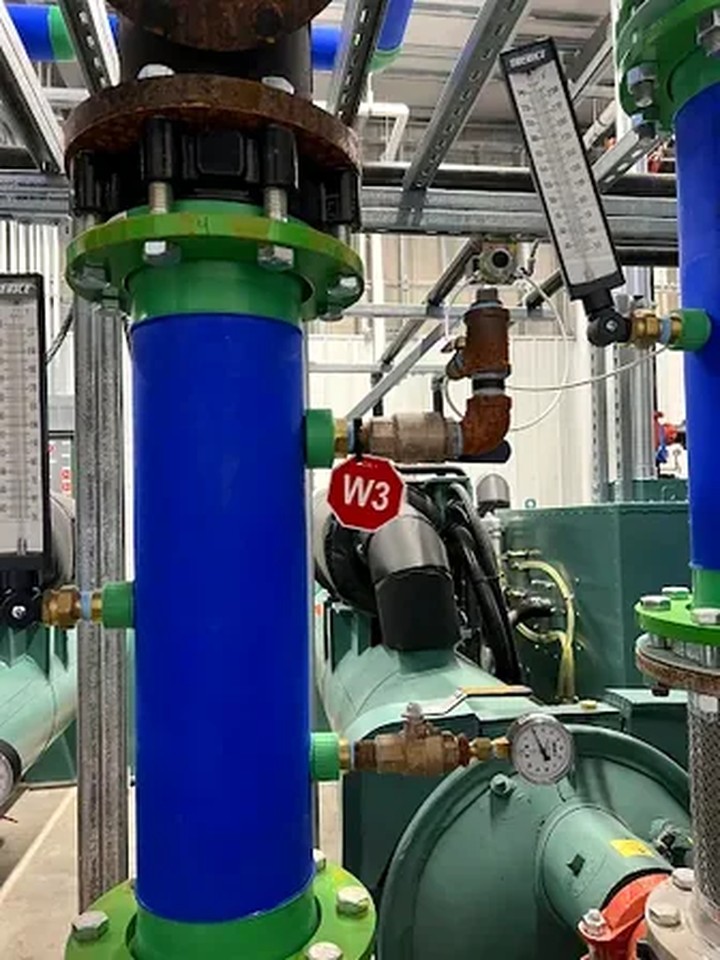

Industrial piping pneumatic valve lockout point with red padlock applied
Pneumatic and piping isolation point

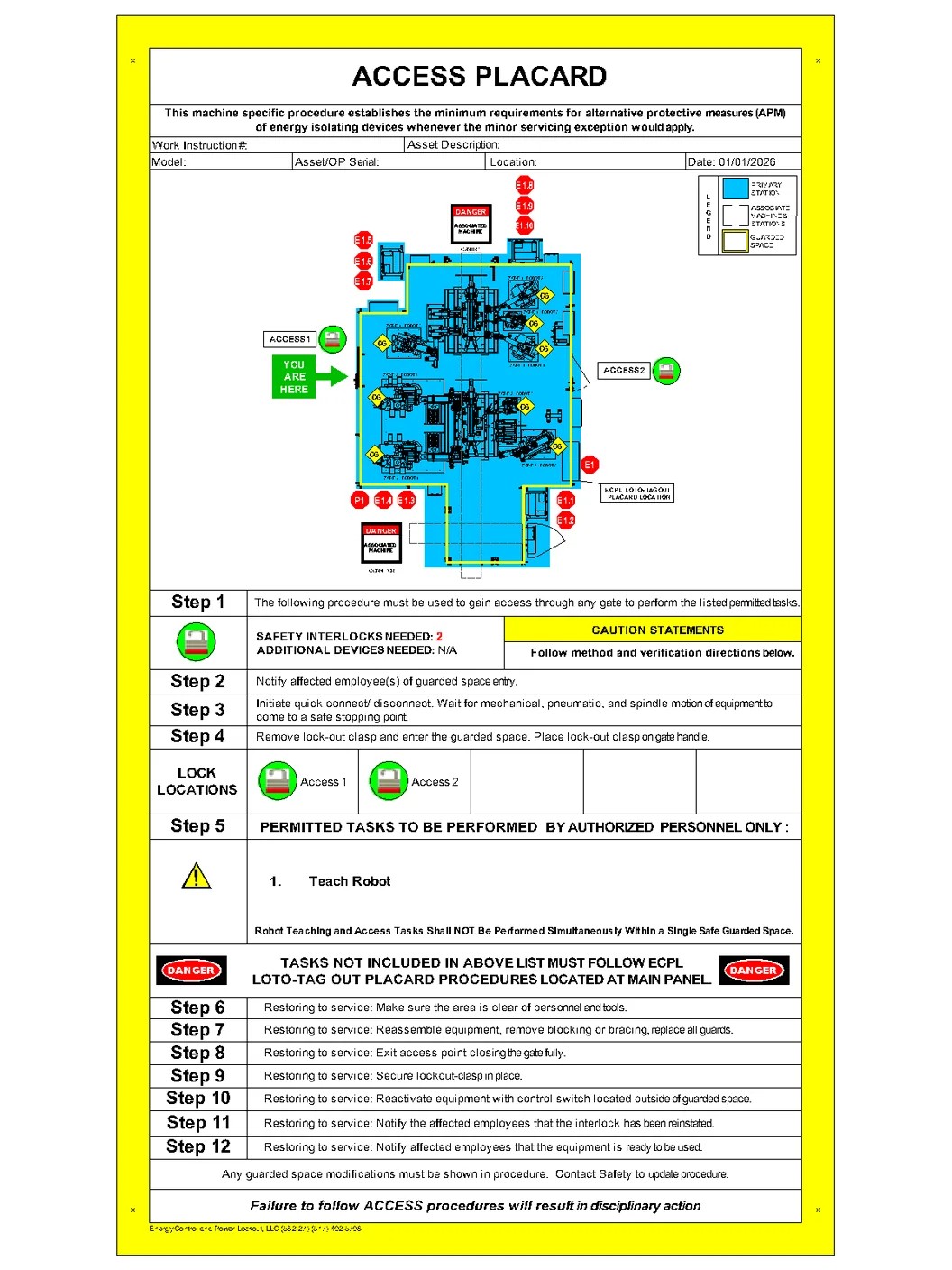

OSHA-compliant access control placard installed at an interlock gated entry to a robotic cell
Access control placard at the point of use

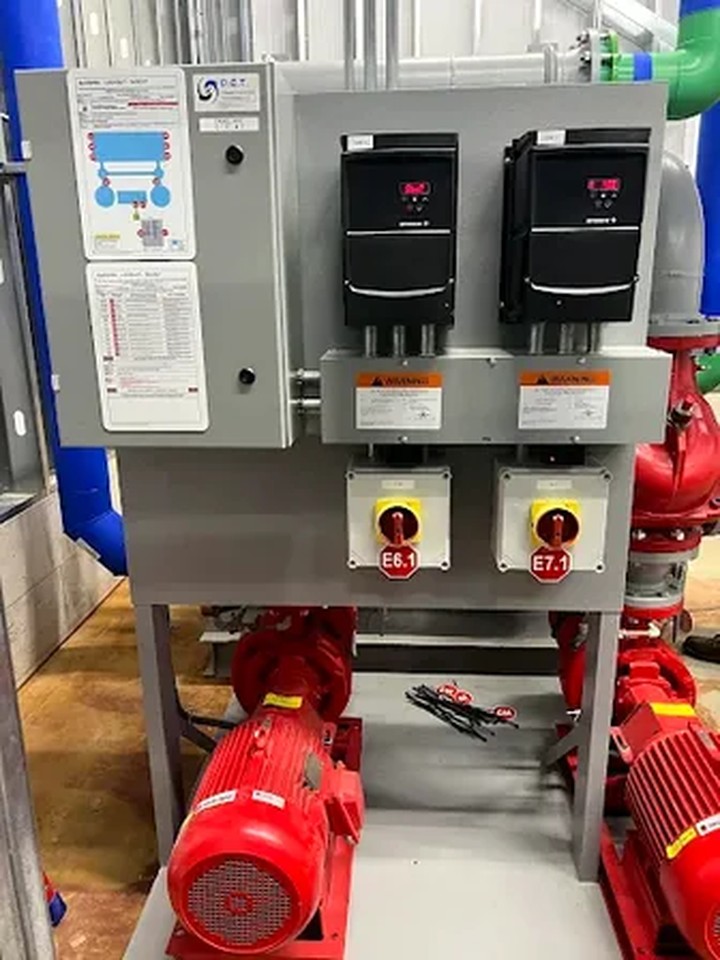

Pump station with multiple lockout points documented and locked out for maintenance
Pump station with documented isolation points

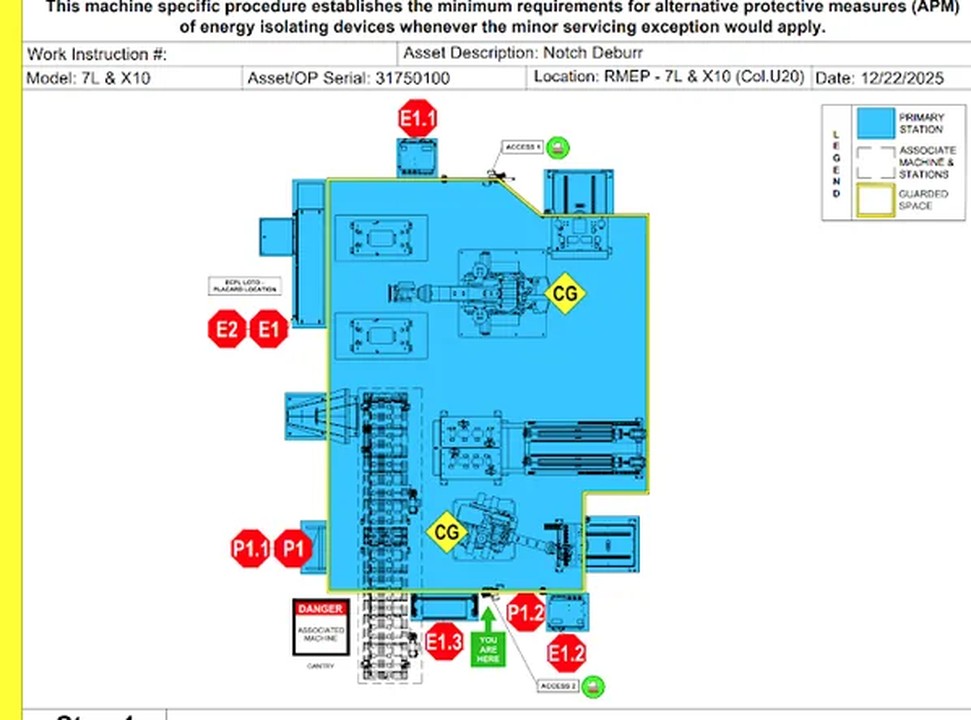

Machine-specific LOTO procedure documentation posted at the point of use
Cell-specific procedure documentation

Service Area

On-Site Across West Michigan and the Midwest

Primary coverage in West Michigan with on-site work across the broader Midwest for multi-facility manufacturers.

Grand Rapids

Furniture, plastics, automotive Tier 1, food and beverage. The densest robotics base in the state outside Detroit.

Holland and Zeeland

Automotive supply, electronics, and the integrator cluster that builds half the cells running in West Michigan.

Kalamazoo

Pharmaceutical packaging, medical device assembly, and food processing robotics.

Lansing

Automotive assembly, capital equipment, and Tier 1 supply with multi-cell integration.

Battle Creek

Food and beverage robotics, consumer packaged goods, and heavy capital equipment.

Muskegon

Foundry, metal forming, and heavy machinery integration with high-consequence isolation requirements.

FAQ

Robot Cell LOTO Questions We Hear Every Week

What is ANSI R15.06 and how does it relate to OSHA 1910.147?

ANSI R15.06 is the U.S. national standard for industrial robot and robot system safety. It is harmonized with ISO 10218-1 (the robot itself) and ISO 10218-2 (the robot system and integration). OSHA 1910.147 is the federal lockout tagout regulation that covers the energy isolation procedure for any equipment with hazardous energy, robot cells included.

R15.06 covers the cell design, safeguarding, and access control. 1910.147 covers what happens once the cell is installed and someone needs to enter it. Compliant facilities meet both. Most failures we see are at the seam between the two.

What does a compliant robot cell LOTO procedure look like?

Cell-specific. It names the cell by ID, identifies every energy source feeding it (electrical mains, pneumatic, hydraulic, stored kinetic, gravity, thermal where applicable), lists the exact isolation point and lockout device for each, and prescribes the verification step before any work begins. It also covers stored energy release in sequence.

A procedure that names a robot family rather than a specific cell fails 1910.147(c)(4). That is the most common failure we see during gap analysis.

Why do robot cells get cited so often during OSHA inspections?

Three patterns repeat. The procedure addresses electrical isolation but ignores pneumatic, hydraulic, or stored kinetic energy. The interlock gated entry has no access control placard at the point of use. The procedure is generic to a robot family rather than the specific cell. Robotics-heavy facilities also tend to add cells faster than they update LOTO documentation, which compounds the gaps over time.

What is an access control placard and why does my cell need one?

An access control placard is a durable, OSHA-compliant sign installed at the interlock gated entry of a robotic cell. It identifies the cell, the authorized procedure for entry, the energy isolation requirements, and any residual hazards. ANSI R15.06 requires safeguarded entry. 1910.147 requires the documented procedure at the point of use. The access control placard is the physical artifact that ties both together.

Cells without one get cited under both standards during the same walkthrough.

Do you serve manufacturers outside the Grand Rapids metro?

Yes. Primary service area is West Michigan, including Grand Rapids, Holland, Zeeland, Kalamazoo, Lansing, Battle Creek, and Muskegon. We also handle on-site work across the broader Midwest for multi-facility manufacturers, including Detroit metro, Chicago, Indianapolis, and Toledo.

How long does a robotics LOTO gap analysis take?

For a typical facility with five to fifteen robot cells, the on-site walkthrough runs half a day to a full day. Written report follows within one week. Larger multi-cell, multi-line facilities take proportional
